¶ Insert the power-loss recovery module as shown in the diagram below, paying attention to the insertion direction and position:
VCC -- 5V
GND -- G
SCL -- TX3
SDA -- RX3
¶ Enable the resume function on the machine side
1.Ensure the machine has been updated to the latest software version
2.Access the console through the screen: Main Interface → More → Console → Enter "plr" → Send
3.Restart the printer

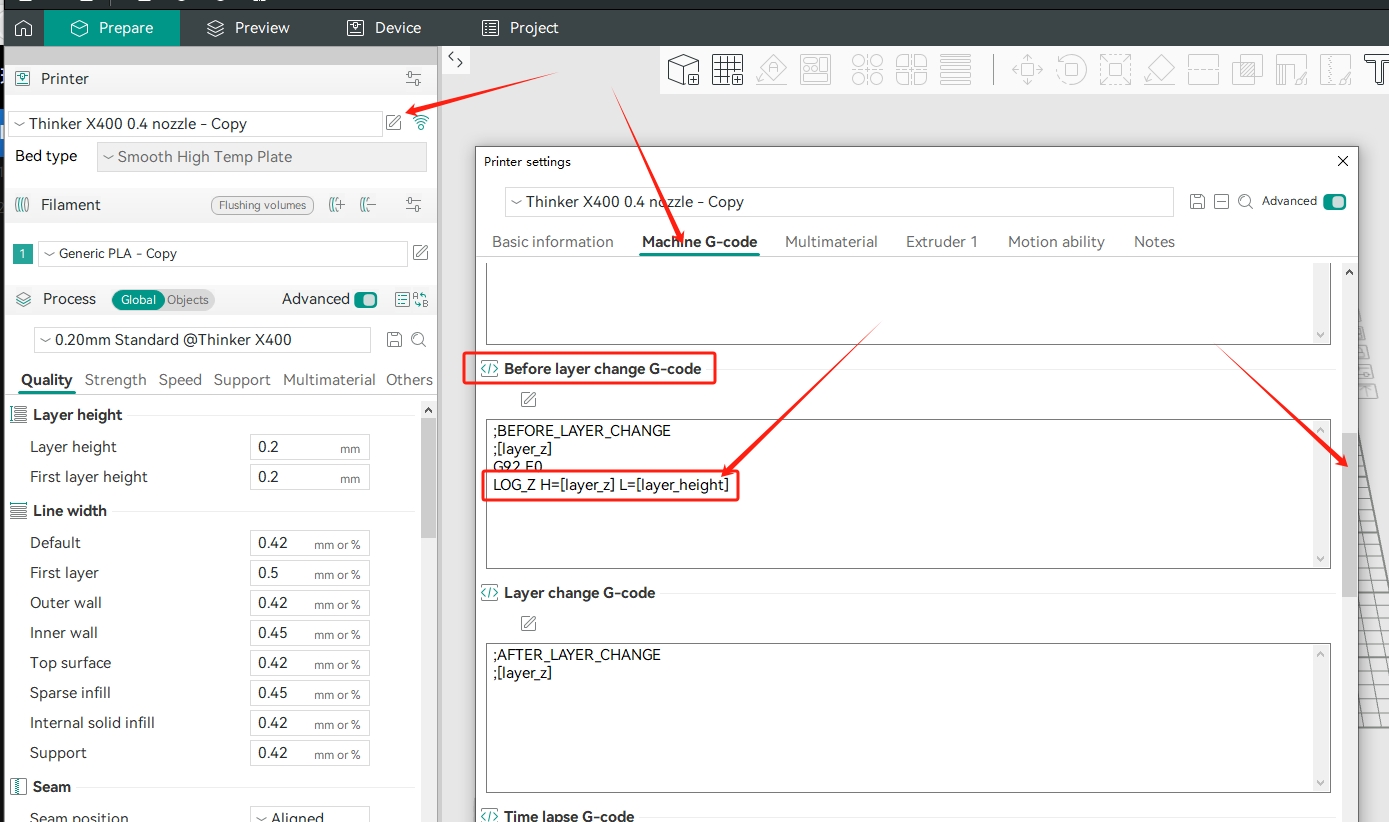

¶ Enable power-loss recovery in the slicing software
Open the slicing software
- Add a line
RESUME_ENABLEto Printer G-code → Printer Start G-code
- Add a line
LOG_Z H=[layer_z] L=[layer_height]to Printer G-code → Before Layer Change G-code
